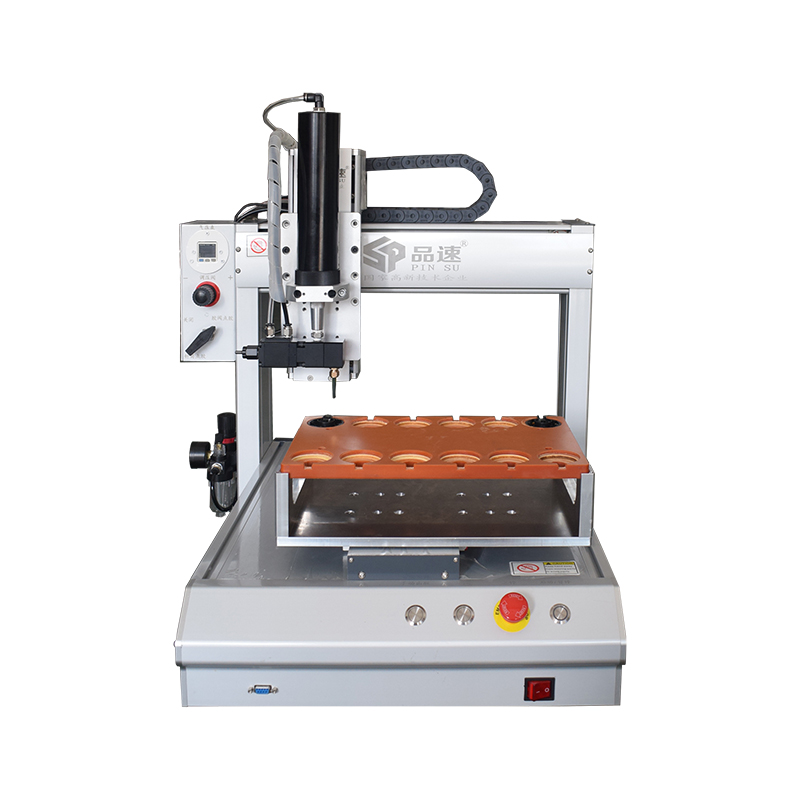

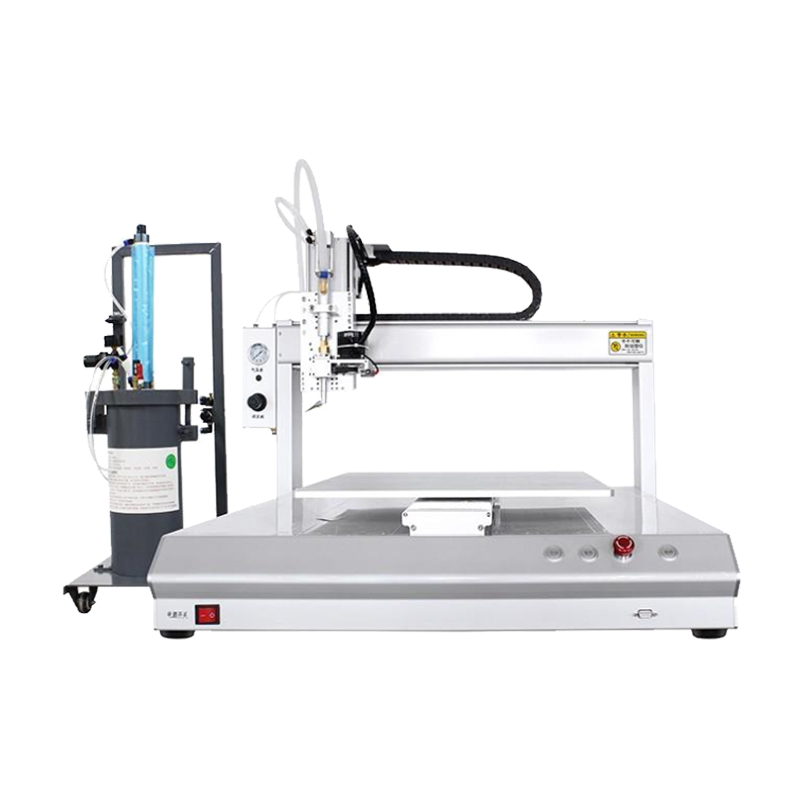

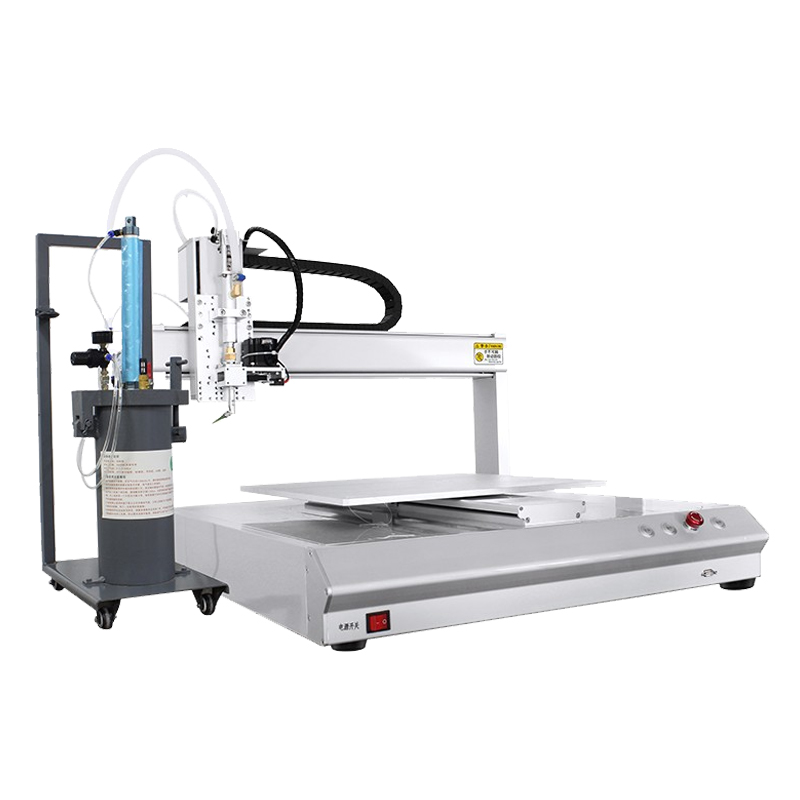

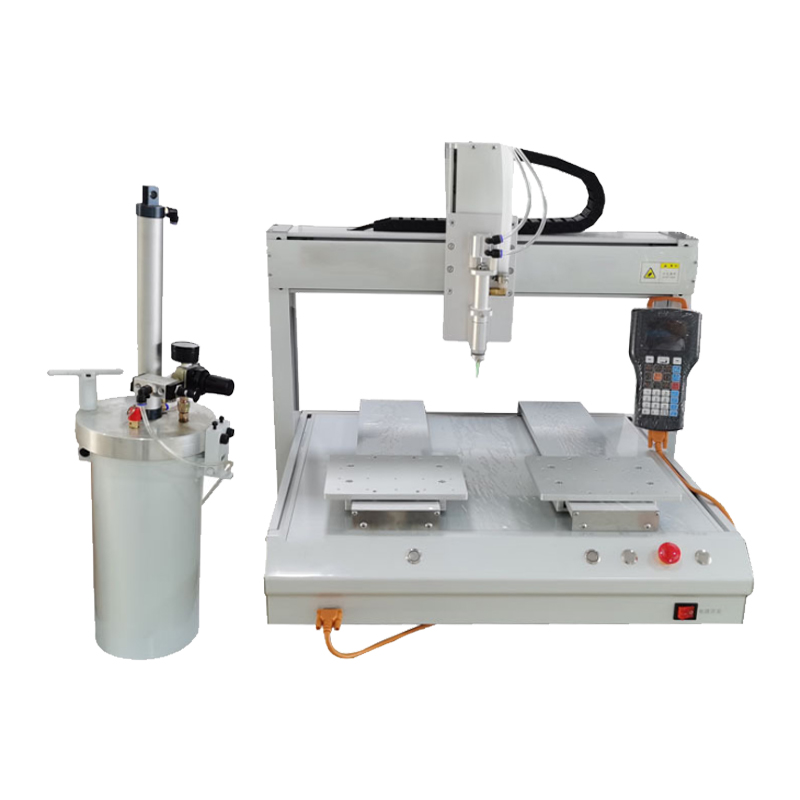

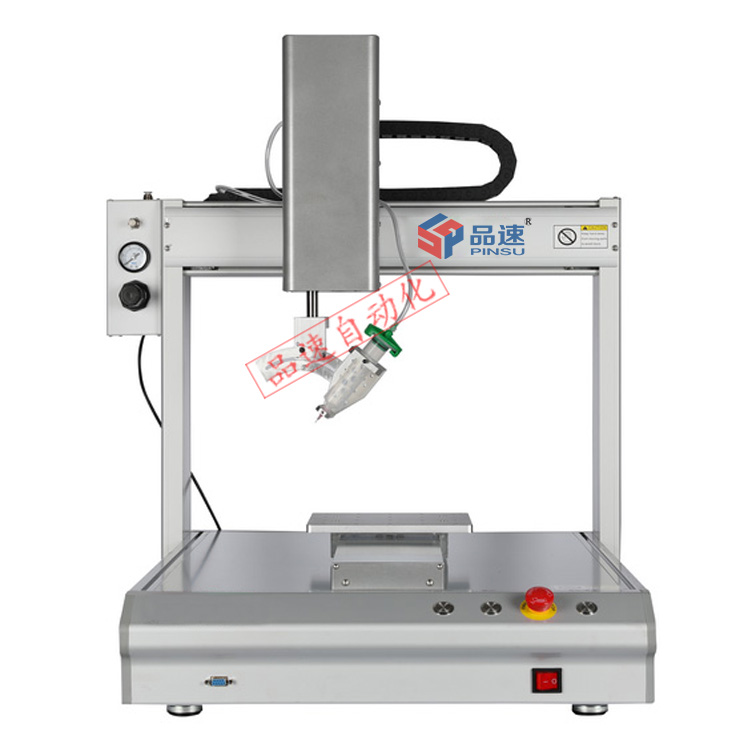

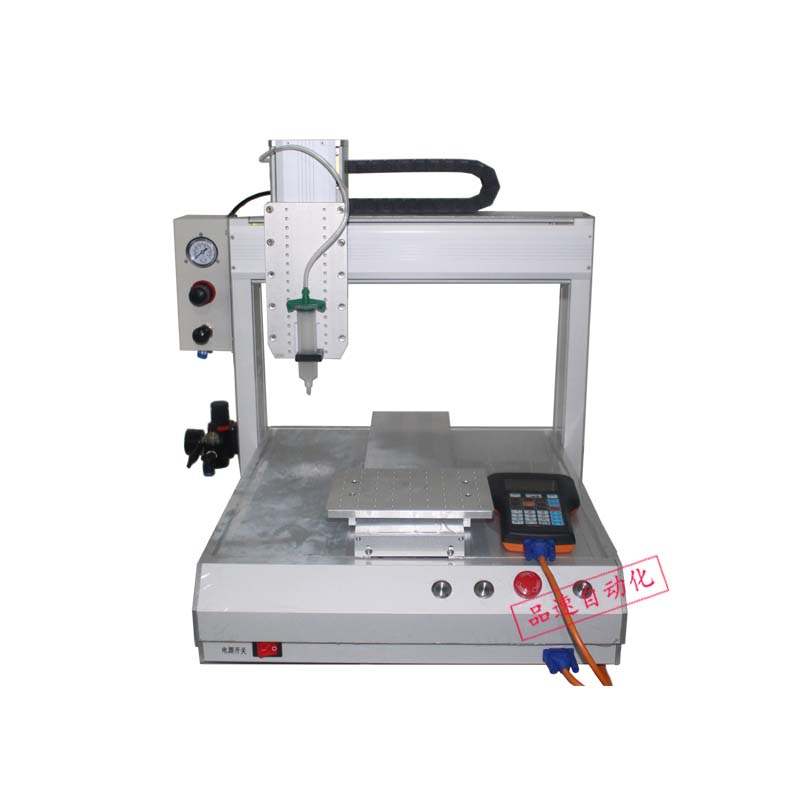

- 2.6L Silicone Adhesive Automatic Dispensing Machine
-
Product Number:DJ331ZM/DJ551ZM/DJ5331ZM/DJ5551ZM
Product Brand:PINSU
Product Description:
2.6L Silicone Adhesive Automatic Dispensing Machine apply to PCB boards, chips, monitors, pumps, instruments, chargers and other products.
- +86-400-7788-990
- Product Parameters
- Application Industry
- App Video
【Machine Description】
2.6L Silicone Adhesive Automatic Dispensing Machine is divided into three-axis dispenser and four-axis dispenser according to the model, our machine is mainly used for 2600ml silicone, it has the characteristics of occupying the small ground, easy to operate and fast dispensing speed.
【Machine Parameter】
Machine name |
||||
Machine model |
PS-DJ331ZM |
PS-DJ551ZM |
PS-DJ5331ZM |
PS-DJ5511ZM |
Effective stroke(X/Y/Z) |
30*30*10CM |
50*50*10CM |
50*(Y1&Y2) 30*10CM |
50*(Y1&Y2) 50*10CM |
Maximum load of synchronous belt |
X/Y-axis 5kg, Z-axis 3kg |
|||
Maximum load of lead screw |
X/Y-axis 15kg, Z-axis 10kg |
|||
Electronic control system |
Intelligent motion control card (with teaching box) |
|||
Information storage space |
256MB |
|||
Supported Project Documents |
CAD/ corelDRAW |
|||
Operation mode |
The stepper motor drives the belt or servo motor driven lead screw |
|||
Running trajectory |
Points, lines, circles, arcs, rectangles, S-shapes, etc |
|||
Operation speed |
Max 300mm/s |
|||
Repeatability |
±0.05mm~±0.02mm |
|||
Power supply |
AC 110V/60HZ,AC 220V/50HZ |
|||
Machine Power |
400W |
|||
Operating pressure range |
0.5-0.8MPa |
【Machine Feature 】
1. Small size footprint, easy to move;
2. Adjustable running speed, can realize point, line, circle, arc, rectangle, S-type running track;
3. Small noise, smooth running, repeatability± 0.05mm ~ ± 0.02mm;
4. Applicable to a variety of glue. Adjustable amount and time of glue dispensing;
5. Machine dispensing valve with suction function, fast stop dispensing, no leakage of glue drops, glue does not pull wire.
【Applicable Glue】
2.6L Silicone Adhesive Automatic Dispensing Machine is suitable for 2.6L silicone adhesive.
【Scope of Application】
2.6L Silicone Adhesive Automatic Dispensing Machine apply to PCB boards, chips, monitors, pumps, instruments, chargers and other products.
