LED Strip Light Drip Glue Machine(10m) LED Strip Light Drip Glue Machine(10m) LED Strip Light Drip Glue Machine(10m)

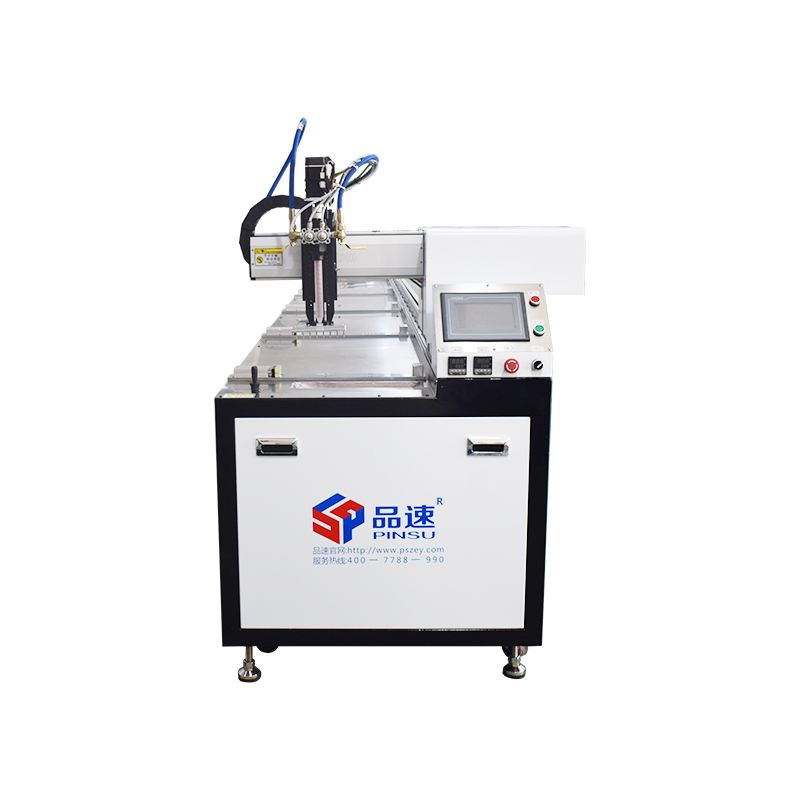

LED Strip Light Drip Glue Machine(10m)

Product Number:PS-DJ10000

Product Brand:PINSU

Product Description:

LED Strip Light Drip Glue Machine for 1:1 Polyurethane PU Glue or 4:1 silicone AB adhesive.

+86-400-7788-990
  • Product Parameters
  • Application Industry
  • App Video
Machine Description

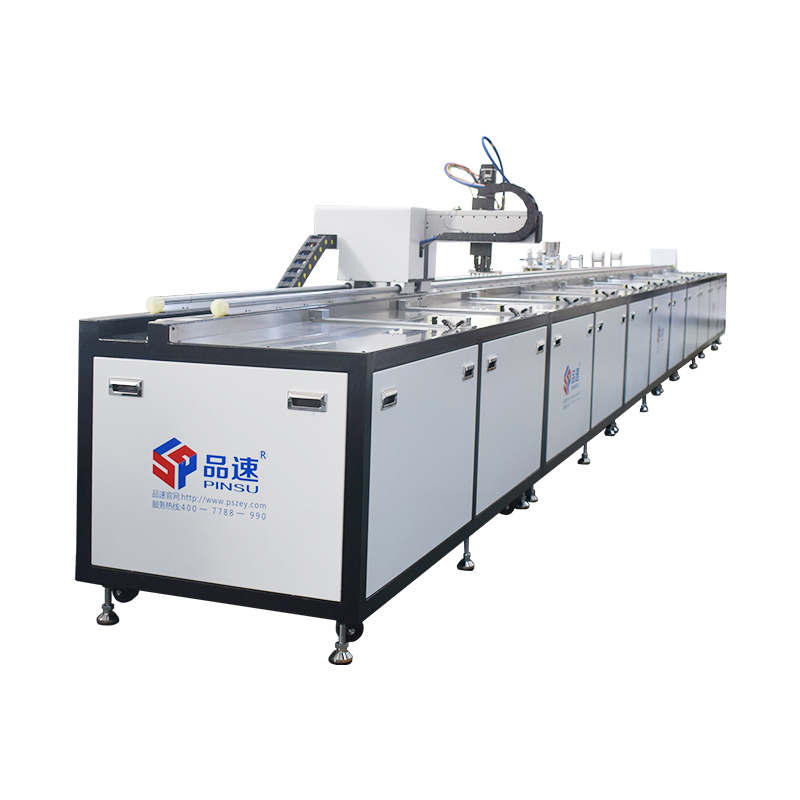

LED Strip Light Drip Glue Machine is mainly used for dispensing and dripping 10 meter light strips; The independently developed high-speed servo dynamic mixing system can reach up to 5000 revolutions per minute, ensuring uniform mixing and multi-head dispensing. The capacity of this machine can drip more than 3000 meters of glue per hour. (with four-head dispensing, it can reach more than 1500 meters per hour); After years of customer verification, the equipment is easy to operate and maintain, and the system is stable and efficient.

LED Strip Light Drip Glue Machine


Machine Parameter】

Mechanical Name

LED Strip Light Drip Glue Machine

10 M

Machine Model

PS-DJ10000

Number of glue nozzle

4/6/8 (Selection according to the type of glue)

Range of glue dosing proportion

1:1 polyurethane AB adhesive/4:1 Silicone AB adhesive

Charging bucket capacity

20L/30L

Cleaning bucket capacity

5L

Measurement method

Gear pump or screw pump (optional)

Measurement accuracy

±2%

Glue dispensing accuracy

±2%

Electronic control system

PLC+Control panel(Operation system setting, modification, storage, etc.)

Operation mode

Stepper motor+belt

Operation track

Points, lines, rectangles

Operating speed

Max 250mm/s

Repeatability

±0.05mm

Mixed model

dynamic mixing

Machine supply

AC 110V/60HZAC 220V/50HZ

Machine Power

2500W

Operating pressure range

0.5-0.8MPa


Applicable Glue】

LED Strip Light Drip Glue Machine for1:1 Polyurethane PU Glue or 4:1 silicone AB adhesive.

Applicable Glue





Scope of Application

The LED strip automatic glue dispensing machine is mainly used for dispensing glue on 10 meter soft light strips and 10 meter hard light strips.

Scope of Application
