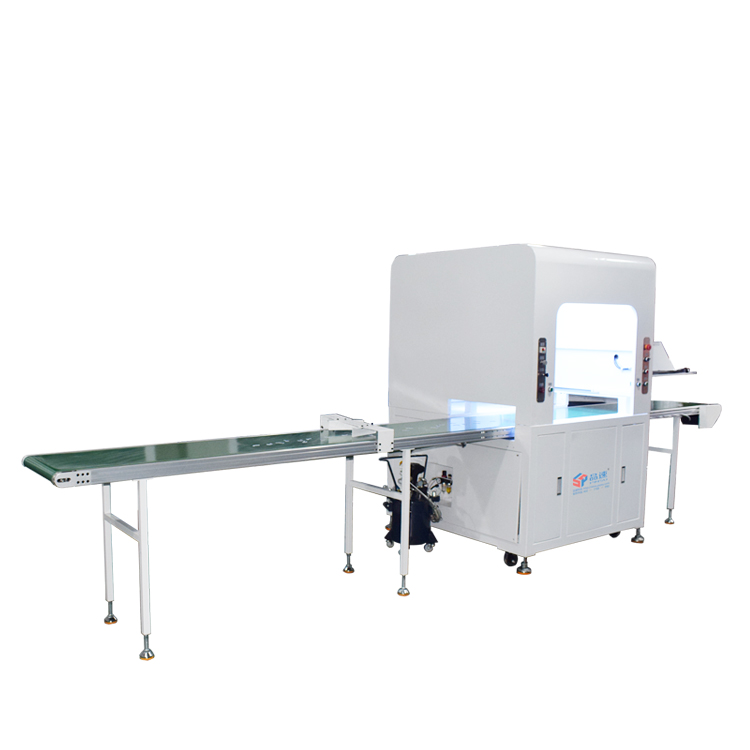

Assembly Line Visual Glue Dispensing Machine

Product Number:PS-DJ

Product Brand:PINSU

Product Description:

Assembly Line Visual Glue Dispensing Machine is used for crystal stickers, intelligent cards, inductors, power supplies, transformers, high-voltage packages, meters, and other products.

+86-400-7788-990
  • Product Parameters
  • Application Industry
  • App Video
【Machine Description

Assembly Line Visual Glue Dispensing Machine and Assembly Line Visual Paint Spotting Machine paint dispensing machine  can be non-standard customized according to the customer's glue, paint ink, production process, product size and other factors.  The assembly line type machine can be docked before and after the process, the product can be placed on the assembly line at any 360 degrees, the system can be automatically positioned, automatic dispensing. Compared with manual dispensing, the efficiency can be increased 2-5 times. According to the one-component or two-component glue to choose the right machine, it is widely used in crystal stickers, intelligent cards, inductors, power supplies, transformers, high-voltage packages, meters, and other products.

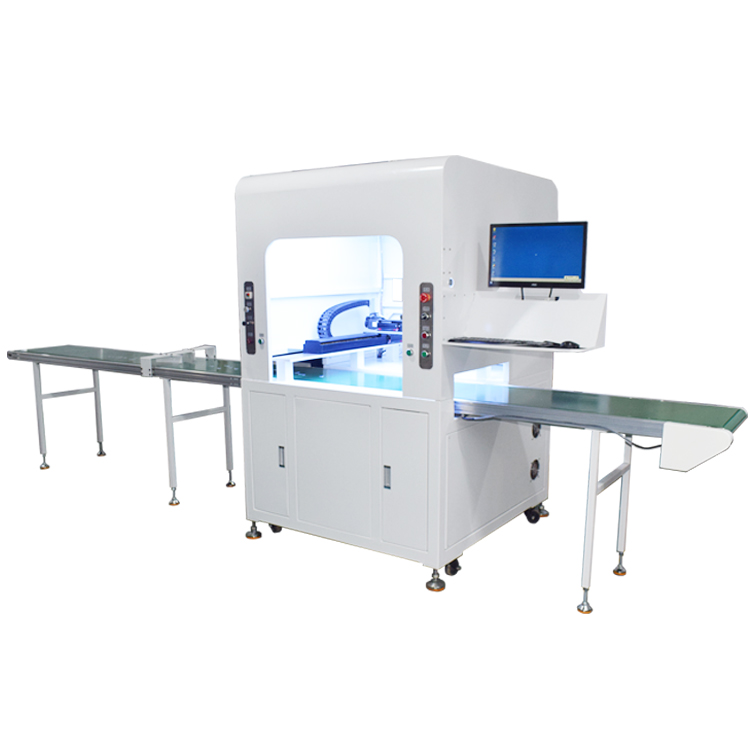

Assembly Line Visual Glue Dispensing Machine


Machine Parameter

Machine name

Assembly Line Visual Glue Dispensing Machine

Machine sizeL*W*H

147*120*195CM (Belt length can be customized)

Effective strokeX/Y/Z

40*50*10CM

Number of cameras

Single cameras

Recognition area

40*50CM

Assembly line length

150CM (can be customized)

Machine weight

200Kg

Charging bucket capacity

Single-component glue machine: 30ML\300ML\pressure barrel

Two-component glue machine: 20L/30L/50L

Cleaning bucket capacity

5L

Number of gluey nozzle

Single-component glue machine: 1

Two-component glue machine: 2-30 gluey nozzles can be made according to the product.

Range of glue dosing proportion

11-101

Measurement method

Single-component glue machine: Single valve pneumatic control

Two-component glue machine: Gear pump or screw pump

Measurement method

±2%

Measurement accuracy

±2%

Electronic control system

PC+monitorP

Operation mode

Servo system control lead screws

Operation track

Points, lines, circles, arcs, rectangles

Operation speed

Max 500mm/s

Repeatability

±0.01mm

Mixed model

Single-component glue machine: Single valve

Two-component glue machine: Static mixing or dynamic mixing

Machine Power

AC 110V/60HZAC 220V/50HZ

Power supply

1500W

Operating pressure range

0.5-0.8MPa


Machine Feature

1. The machine adopts CCD vision system with automatic imaging and automatic positioning function;

2. The machine integrates assembly line, CCD vision system and dispensing system together. The products are placed at random, and after dispensing, they are shipped automatically.

3. The machine can form a complete production line with other equipment.


Applicable Glue

Assembly Line Visual Glue Dispensing Machine for UV Glue, Chloroprene Glue, anaerobic Glue, vanish, epoxy resin AB Glue, polyurethane Glue, silicone Glue, pouring sealant, transparent epoxy resin Glue, transparent polyurethane Glue, SMT red glue, black glue, lubricating grease, paint, printing ink.

Applicable Glue



Scope of Application

Assembly Line Visual Glue Dispensing Machine is used for crystal stickers, intelligent cards, inductors, power supplies, transformers, high-voltage packages, meters, and other products.

Scope of Application
