Products
Two Group Glue System Filling Machine Two Group Glue System Filling Machine Two Group Glue System Filling Machine

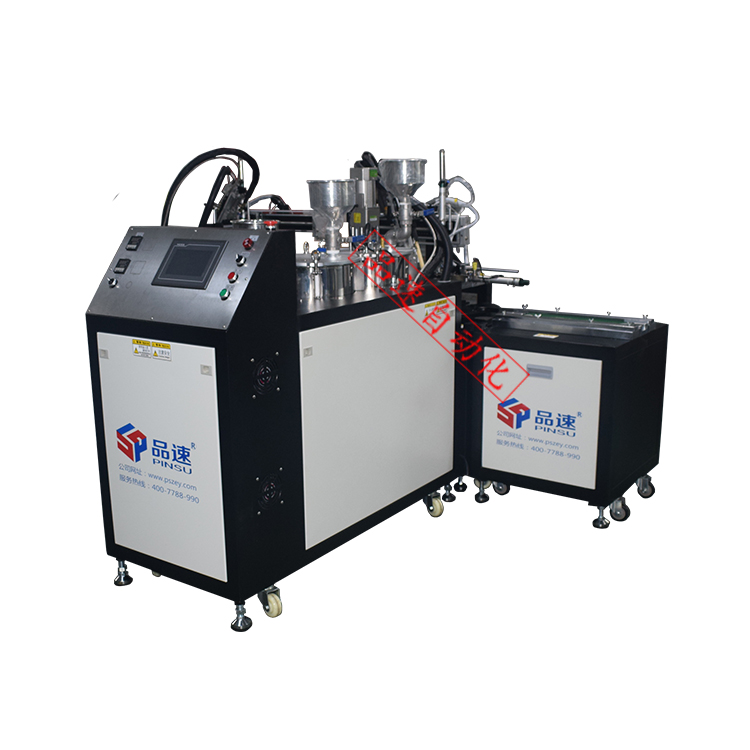

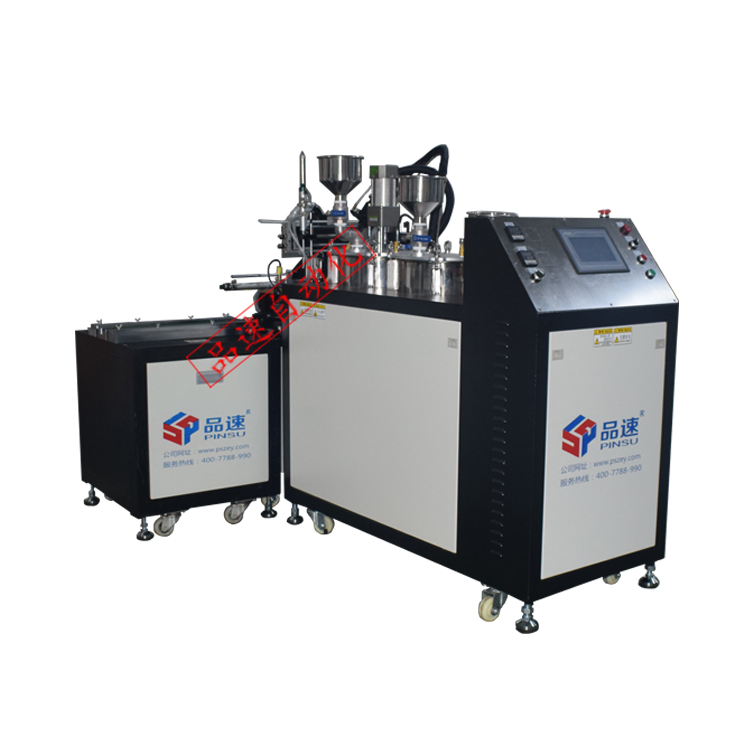

Two Group Glue System Filling Machine

Product Number:PS-PJ230SS

Product Brand:PINSU

Product Description:

Two Group Glue System Filling Machine for Filter end Caps, air filter end caps, water filter end caps, and other round products.

+86-400-7788-990
  • Product Parameters
  • Application Industry
  • App Video
【Machine Description】

Two Group Glue System Filling Machine using dual glue supply system, can be independently mixed AB glue. Our machine dispenses glue fast, the amount of glue is accurate, the glue is mixed evenly, and it can complete one top and bottom gluing in 1.8 seconds. For the size of the product, the machine's glue valve spacing is adjustable, mainly used in filter disc gluing.

Two Group Glue System Filling Machine

Machine Parameter

Machine name

Two Group Glue System Filling Machine

Machine model

PS-PJ230SS

Machine sizeL*W*H

100*115*150CM

Applicable sizes of products

diameter 5.5-11CM

Operational platforms

Dual push platform (Two platforms can be glued at the same time)

Charging bucket capacity

20L/30L/50L

Cleaning bucket capacity

5L

Range of glue dosing proportion

11-101

Measurement method

Gear pump or screw pump (optional)

Measurement accuracy

±2%

Glue dispensing accuracy

±2%

Mixed model

Dynamic mixing

Electronic control system

Touch screen +PLC

Power supply

AC 110V/60HZAC 220V/50HZ

Machine Power

 3500W

Operating pressure range

0.4-0.8MPa


Machine Feature

1. The machine has 2 sets of ab glue supply system, which can be used for gluing 2 products at the same time;

2. The machine is equipped with a heating device to heat the ab glue and make it flow;

3. The machine is equipped with stirring device to stir the AB glue in the Charging bucket to prevent the glue from settling and layering;

4. The machine realizes the automatic proportioning of AB glue, automatic mixing and quantitative dispensing of glue;

5. It comes with a cleaning device to clean the mixing valve quickly and effectively;

6. Adopting precision metering pump to proportion and mix the glue, proportioning accuracy ± 2%.


Applicable Glue

Two Group Glue System Filling Machine is suitable for 1:1-10:1 Epoxy Resin AB Glue , Polyurethane PU Glue .

Applicable Glue


Scope of Application

Two Group Glue System Filling Machine for Filter end Caps, air filter end caps, water filter end caps, and other round products.

Scope of Application
