Products

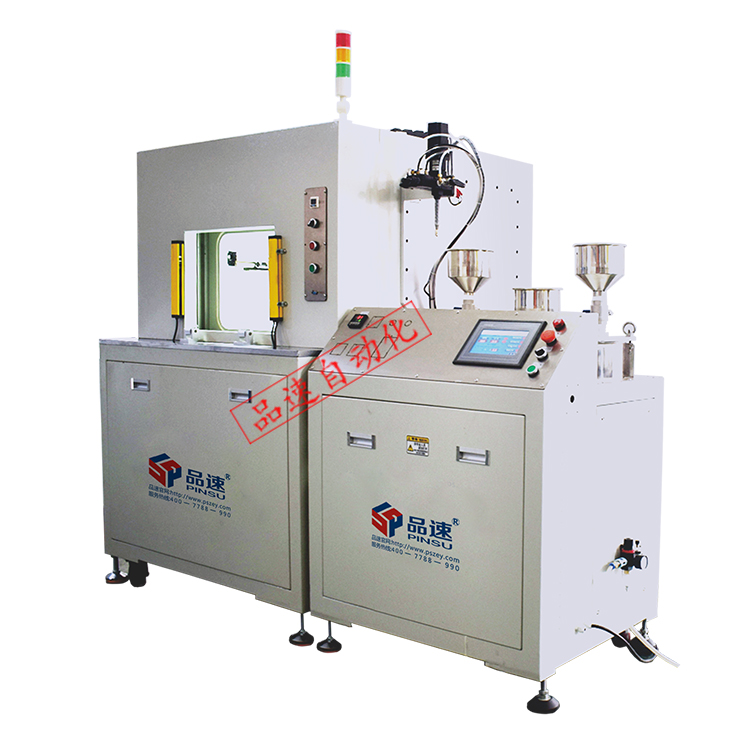

 Vacuum Glue Filling Machine  Vacuum Glue Filling Machine  Vacuum Glue Filling Machine
Vacuum Glue Filling Machine

Product Number:PS-DJ451ZK

Product Brand:PINSU

Product Description:

Vacuum Glue Filling Machine apply to batteries, power supplies, adapters, instrument transformers, transformers, sensors, ignition coils, capacitors, power modules, motors.

+86-400-7788-990
  • Product Parameters
  • Application Industry
  • App Video
Machine Description

Vacuum Glue Filling Machine is a machine for filling glue in a vacuum environment, this machine is mainly used in high precision products need to be completed in a vacuum environment. We make reasonable configuration for the machine according to different glue (epoxy resin AB glue, polyurethane AB glue, silicone AB glue). Gluing technology is widely used in batteries, power supplies, adapters, instrument transformers, transformers, sensors, ignition coils, capacitors, power modules, motors and other products.

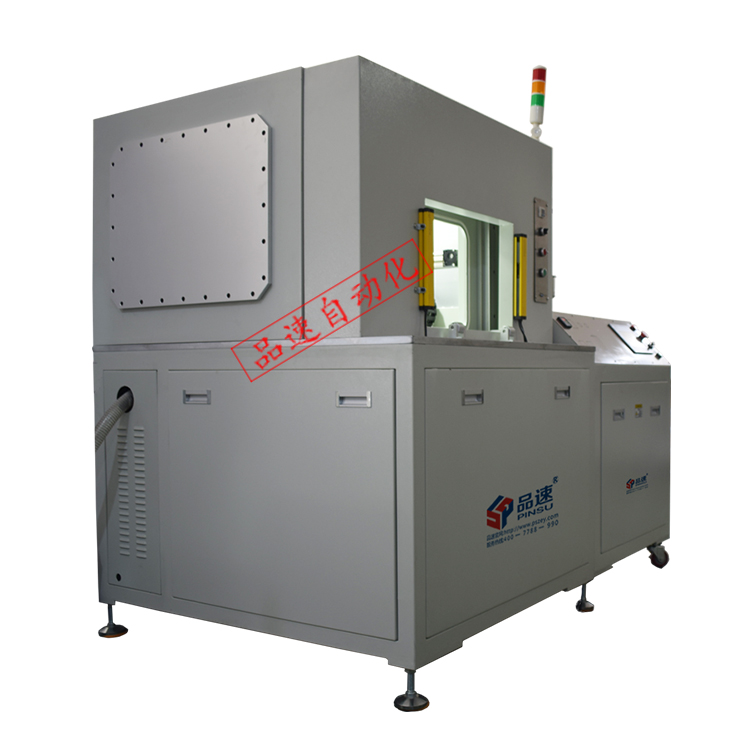

 Vacuum Glue Filling Machine

Machine Parameter

Machine name

Vacuum Glue Filling Machine

Machine model

PS-DJ451ZK

Machine sizeL*W*H

195*120*160CM

Effective strokeX/Y/Z

40*35*10CM

Vacuum box size

104*104*70CM

Machine weight

800Kg

Number of gluey nozzle

1/2

Range of glue dosing proportion

1:1-10:1

Mixed model

Static mixing or dynamic mixing

Charging bucket capacity

20L/30L/50L

Cleaning bucket capacity

5L

Measurement method

Gear pump or screw pump (optional)

Measurement accuracy

±2%

Glue dispensing accuracy

±2%

Electronic control system

Touch screen +PLC+ Intelligent motion control card

Operation mode

The stepper motor drives the belt

Operation track

Points, lines, circles, arcs, rectangles, S-shapes, etc

Repeatability

±0.03mm

Operation speed

Max 300mm/s

Machine Power

2500W-4000W

Power supply

AC 110V/60HZAC 220V/50HZ

Operating pressure range

0.5-0.8MPa

vacuum degree

0~0.09Mpa(MAX)

Vacuum pumping speed

30L/S

Vacuum extraction time

35S


Machine Feature

1.AB glue can be automatically proportioning, automatic mixing, quantitative glue

2. The glue output of AB glue and the time of glue output can be adjusted;

3. xyz three-axis running speed can be adjusted, it can realize point, line, circle, arc, rectangle, S-shaped running track;

4. Ab glue barrel comes with liquid level sensor, when the glue is insufficient, the system will remind to add glue;

5. The machine comes with a cleaning device, which can automatically clean the mixing valve and mixing tube for next time use.

6. Three kinds of vacuum gluing process, it can meet the different process requirements of customers;

7. Fast vacuum pumping speed, the vacuum degree can reach 0 ~ 0.09Mpa (MAX), effectively removing the air bubbles in the gluing products.


Applicable Glue

Vacuum Glue Filling Machine is suitable for epoxy resin AB glue, polyurethane AB glue, silicone AB glue.


Applicable Glue



Scope of Application

Vacuum Glue Filling Machine apply to batteries, power supplies, adapters, instrument transformers, transformers, sensors, ignition coils, capacitors, power modules, motors.

Scope of Application
