Double Y-axis Vacuum Filling Machine Double Y-axis Vacuum Filling Machine Double Y-axis Vacuum Filling Machine

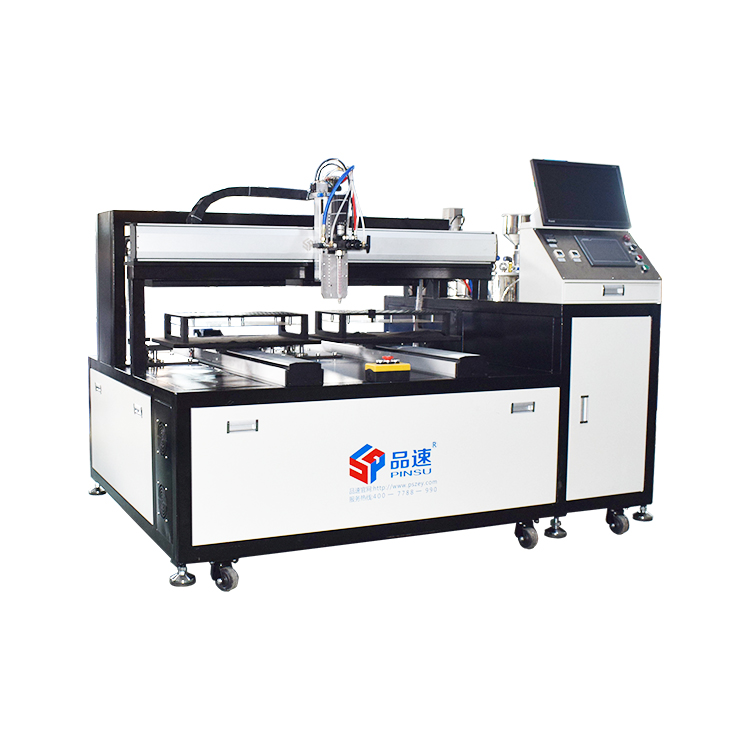

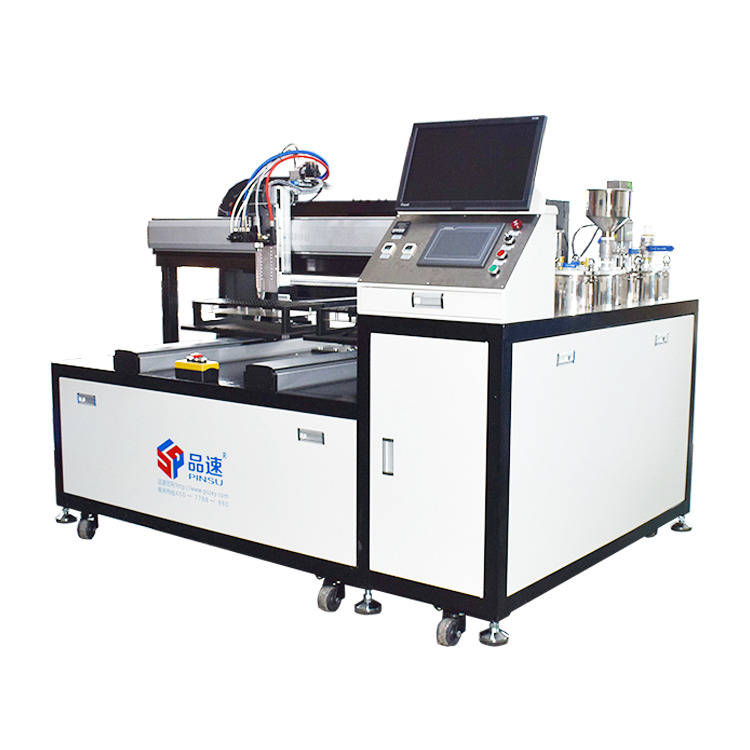

Double Y-axis Vacuum Filling Machine

Product Number:PS-DJ5221ZKS

Product Brand:PINSU

Product Description:

Double Y-axis Vacuum Filling Machine applied to Capacitors, Inductors, Transformers, Sensors, Ignition Coils, Motor Coils, Capacitors, PowerModules, Inverters, etc., Batteries, Medical Devices.

+86-400-7788-990
  • Product Parameters
  • Application Industry
  • App Video

Machine Description

Double Y-axis vacuum gluing machine adopts the integrated design of gluing and vacuuming, which improves the efficiency of gluing and vacuuming, and effectively ensures the quality of gluing. It is suitable for 1:1-10:1 epoxy resin AB glue, polyurethane AB glue, silicone AB glue, widely used in Capacitors, Inductors, Transformers, Sensors, Ignition Coils, Motor Coils, Capacitors, Power Modules, Inverters, etc., Batteries, Medical Devices.

Double Y-axis Vacuum Filling Machine

Machine Parameter

Machine name

Double Y-axis vacuum gluing machine

Machine model

PS-DJ5221ZKS

Machine sizeL*W*H

200*140*155CM

Effective strokeX/Y/Z

X140*Y1&Y2 100*Z10CM

Vacuum box size

55*33*25CM

Machine weight

650Kg

Number of gluey nozzle

2-10

Range of glue dosing proportion

11-101

Mixed model

Static mixing or dynamic mixing

Charging bucket capacity

20L/30L/50L

Cleaning bucket capacity

5L

Measurement method

Gear pump or screw pump (optional)

Measurement accuracy

±2%

Glue dispensing accuracy

±2%

Electronic control system

PC+PLC+Touch screen

Operation mode

The stepper motor drives the belt

Operation track

Points, lines, circles, arcs, rectangles, S-shapes, etc

Repeatability

±0.03mm

Operation speed

Max 300mm/s

Machine Power

3500W

Power supply

AC 110V/60HZAC 220V/50HZ

Operating pressure range

0.5-0.8MPa

vacuum degree

00.09MpaMAX

Vacuum pumping speed

30L/S

Vacuum extraction time

35S


Machine Feature

1. Double working platforms, double vacuum tanks, can be filled with glue and vacuumed at the same time;

2. The machine realizes the automatic proportioning and mixing of ab glue.

3. The glue output of AB glue and the time of glue output can be adjusted;

4. It can realize point, line, circle, arc, rectangle, S-shaped running track;

5. Ab glue barrel comes with liquid level sensor, when the glue is insufficient, the system will remind to add glue;

6. The machine comes with a cleaning device, which can automatically clean the mixing valve and mixing tube for next time use.


Applicable Glue

Double Y-axis Vacuum Filling Machine for Epoxy Resin AB Glue, Polyurethane AB Glue, Silicone AB Glue

Applicable Glue


Scope of Application

Double Y-axis Vacuum Filling Machine applied to Capacitors, Inductors, Transformers, Sensors, Ignition Coils, Motor Coils, Capacitors, PowerModules, Inverters, etc., Batteries, Medical Devices.

Scope of Application
