Products
AB glue visual dispensing machine AB glue visual dispensing machine AB glue visual dispensing machine AB glue visual dispensing machine

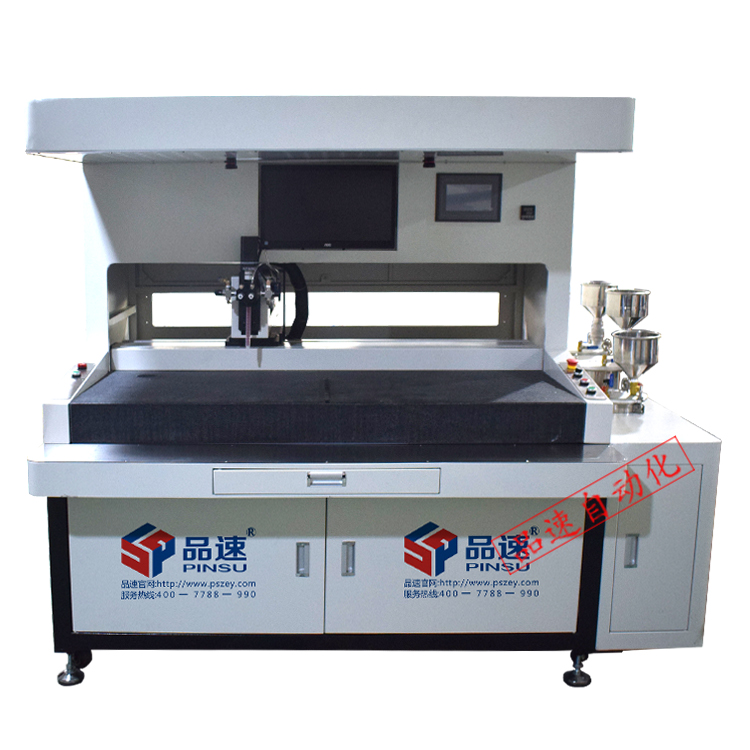

AB glue visual dispensing machine

Product Number:SJ2530S/SJ3040S/SJ4060S/SJ4060HS

Product Brand:PINSU

Product Description:

AB glue visual dispensing machine is suitable for 1:1-10:1 fixed ratio adjustable epoxy resin AB adhesive, polyurethane PU adhesive, silicone AB adhesive, transparent epoxy resin AB adhesive, pouring sealant.

+86-400-7788-990
  • Product Parameters
  • Application Industry
  • App Video

Machine Description

AB glue visual dispensing machine is customized according to customer's glue, paint ink, production process, product size and other factors. The machine adopts imported lead screw, CCD vision system, marble platform, automatic dispensing and other designs. Products in the machine can be placed at will 360 degrees, the system can automatically locate and identify.  Not only can it form double liquid dispensing with automatic dispenser, but also can realize automatic proportioning, dosing and mixing of AB glue. The machine is characterized by left and right double camera recognition and double platform alternating operation. Compared with manual dispensing, the efficiency can be increased 2-5 times. The machine has a wide range of applications, including crystal stickers, jewelry, metal label, window paper-cut, fisheye, decorations, hanging tablets, intelligent cards, inductors, power supplies, mutual inductors, high-voltage vessel, energy meters, and other products.

Machine Showcase


Machine Parameter


Machine name

AB glue visual dispensing machine

Machine model

PS-SJ2530S

PS-SJ3040S

PS-SJ4060S

PS-SJ4060HS

Machine sizeL*W*H

185*115*180CM

189*164*187CM

214*174*196CM

215*114*196cm

Number of operational platforms

Mobile dual platform

Left/Right Dual Platform

Left/Right Dual Platform

Left/Right Dual Platform

Number of cameras

Single camera

Two cameras

Two cameras

Two cameras

Recognition area

25*30CM

30*40CM

40*60CM

40*60CM

Machine weight

390Kg

670Kg

700Kg

730Kg

Countertops Material

Aluminum countertops

Marble countertops

Marble countertops

Marble countertops

Charging bucket capacity

20L/25L

Cleaning bucket capacity

5L

Number of valves

2-30 gluey nozzles can be made according to the product.

Range of glue dosing proportion

11-101

Measurement method

Gear pump or screw pump (optional)

Measurement accuracy

±2%

Electronic control system

PC+monitor+PLC+Touch screen

Operation mode

Servo system control lead screws OR the servo system drives the belt

Operation track

Points, lines, circles, arcs, rectangles

Operation speed

Max 500mm/s

Repeatability

±0.01mm

Mixed model

Static mixing or dynamic mixing

Power supply

AC 110V/60HZAC 220V/50HZ

Machine Power

2000-4000W

Operating pressure range

0.5-0.8MPa


Machine Feature

1. The machine realizes automatic precision measuring and proportioning of AB glue and automatic mixing;

2. Servo motor and screw form XYZ running module, with fast speed, smooth running, low noise, Repeatability of ± 0.01mm.

3. The machine has visual recognition, automatic positioning function, the product can be placed arbitrarily on the table surface can be recognized;

4. Machine running speed, dispensing volume, dispensing time can be manually controlled, not only to improve production efficiency, but also to ensure product dispensing quality;

5. The machine comes with a cleaning device, which can automatically clean the mixing valve and mixing tube for the next use;

6. The machine comes with a suction function, which can quickly stop the glue, no dripping, no pulling.

7. The machine barrel comes with liquid level sensor, when the glue quantity is insufficient, the system will automatically alarm to remind to add glue.


Applicable Glue

AB glue visual dispensing machine is suitable for 1:1-10:1 fixed ratio adjustable epoxy resin AB adhesive, polyurethane PU adhesive, silicone AB adhesive, transparent epoxy resin AB adhesive, pouring sealant.

Applicable Glue




Scope of Application

AB glue visual dispensing machine is used for Negative ion generator, sensors, transformers, inductors, relays, ballasts, PCB, control boards, instrument transformer, high voltage packages, photovoltaic panels, 3D Fish Eye Sticker, self-adhesive labels, stickers, badges, Car Stickers, jewelry, refrigerator stickers, acrylic products, handicrafts and so on.

Scope of Application
