Products
Visual Paint Spotting Machine Visual Paint Spotting Machine Visual Paint Spotting Machine

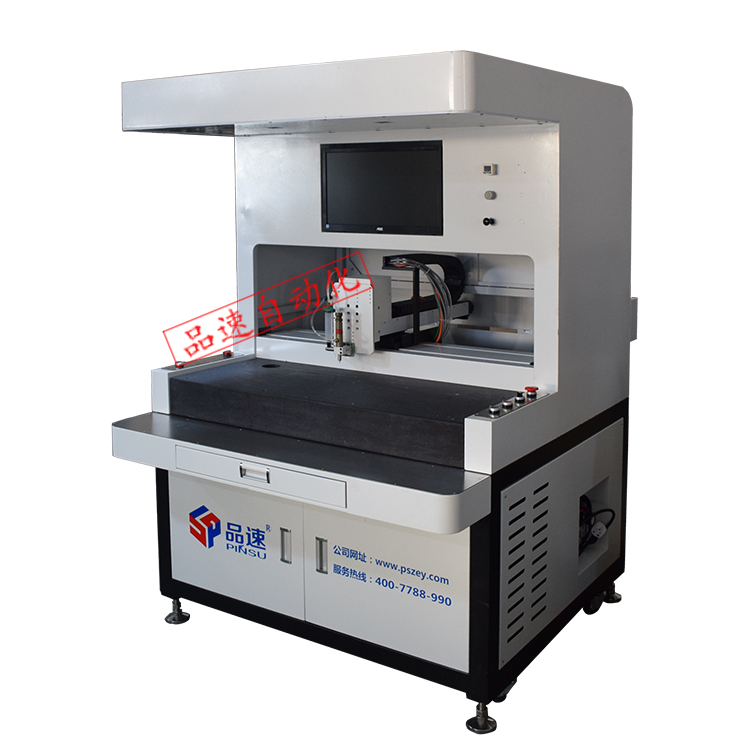

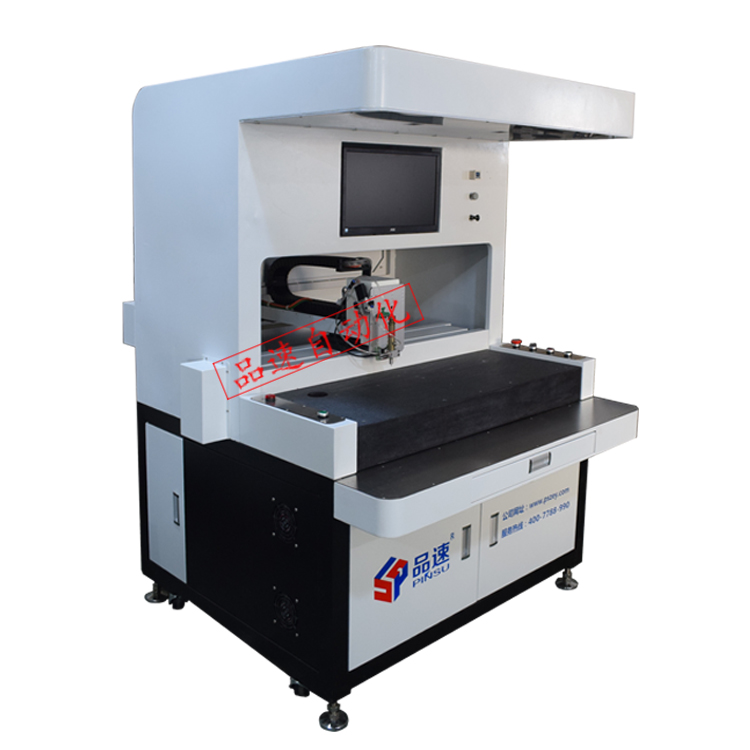

Visual Paint Spotting Machine

Product Number:SJ3040

Product Brand:PINSU

Product Description:

Visual Paint Spotting Machine is mainly used for signage, nameplate, badges, school emblems, factory emblems, jewelry, logo, hardware, plastic parts and other products.

+86-400-7788-990
  • Product Parameters
  • Application Industry
  • App Video
Machine Description

Visual Paint Spotting Machine is customized according to customer's glue, paint ink, production process, product size and other factors. It can be used for paint coloring, inking, dotting solder paste and other products process operation. Products in the machine can be placed at will 360 degrees, the system can automatically locate and identify. Left and right double camera recognition, double platform can be alternately operated automatically. Compared with manual dispensing, the machine efficiency can be increased 2-5 times.


Visual Paint Spotting Machine

Machine Parameter

Machine model

PS-SJ3040

Machine name

Visual Paint Spotting Machine

Number of cameras

Two cameras

Number of operational platforms

Left/Right Dual Platform

Recognition area

30*40CM

Machine weight

590Kg

Countertops Material

Marble countertops

Charging bucket capacity

30ML\300ML\pressure barrel

Number of valves

Single valve (Maximum 4)

Measurement method

Single valve pneumatic control

Measurement accuracy

±2%

Electronic control system

PC+monitor

Operation mode

Servo system control lead screws

Operation track

Points, lines, circles, arcs, rectangles

Operation speed

Max 500mm/s

Repeatability

±0.01mm

Mixed model

Single valve

Power supply

AC 110V/60HZAC 220V/50HZ

Machine Power

2000W

Operating pressure range

0.5-0.8MPa


Machine Feature

1. Servo motor and screw form XYZ running module, with fast speed, smooth running, low noise, Repeatability of ± 0.01mm.

2. The machine has visual recognition, automatic positioning function, the product can be placed arbitrarily on the table surface can be recognized;

3. Machine running speed, paint dispensing volume, paint dispensing can be manually controlled, not only to improve production efficiency, but also to ensure product dispensing quality;

4. The machine comes with a suction function, which can quickly stop paint spotting, no dripping, no pulling.


Applicable liquids

Visual Paint Spotting Machine are mainly used for paint and ink dispensing.

Applicable liquids





Scope of Application

Visual Paint Spotting Machine is mainly used for signage, nameplate, badges, school emblems, factory emblems, jewelry, logo, hardware, plastic parts and other products.

Visual Paint Spotting Machine
