Products
AB Glue Dual Supply System Vision Dispensing Machine AB Glue Dual Supply System Vision Dispensing Machine AB Glue Dual Supply System Vision Dispensing Machine AB Glue Dual Supply System Vision Dispensing Machine

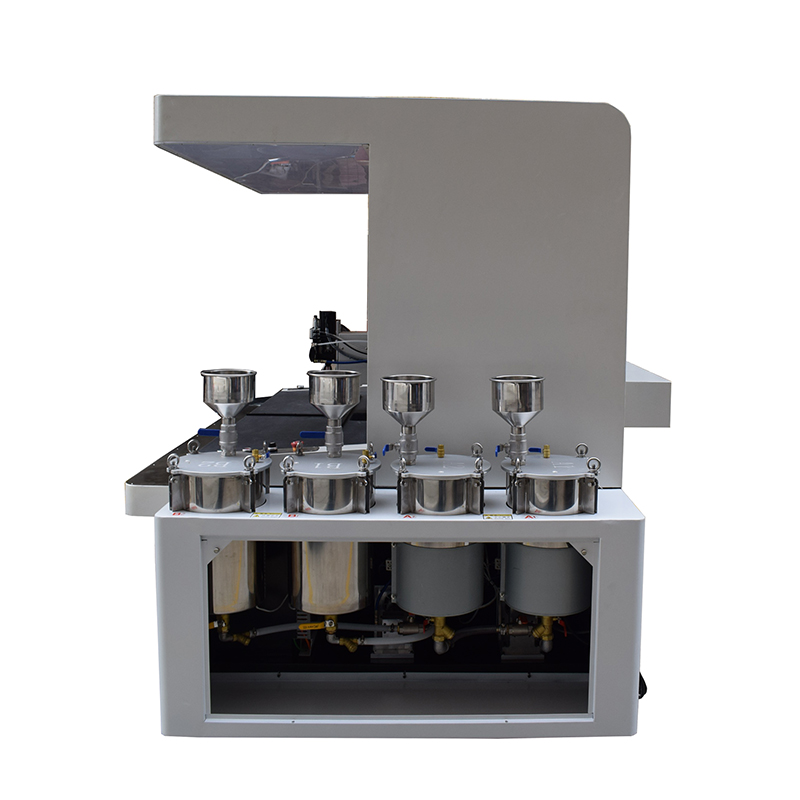

AB Glue Dual Supply System Vision Dispensing Machine

Product Number:PS-SJ4060S

Product Brand:PINSU

Product Description:

AB Glue Dual Supply System Vision Dispensing Machine apply to crystal stickers, jewelry, metal label, window paper-cut, fisheye, decorations, hanging tablets, intelligent cards, inductors, power supplies, mutual inductors, high-voltage vessel, energy meters, and other products.

+86-400-7788-990
  • Product Parameters
  • Application Industry
  • App Video
Machine Description

AB glue double glue supply system vision dispenser adopts 2 sets of AB glue supply system. The machine adopts imported lead screw, CCD vision system, marble platform, automatic dispensing and other designs. Products in the machine can be placed at will 360 degrees, the system can automatically locate and identify. It can realize automatic proportioning, dosing and mixing of AB glue, fully automatic completion.The machine is characterized by left and right double camera recognition and double platform alternating operation. Compared with manual dispensing, the efficiency can be increased 2-5 times. The machine has a wide range of applications, including crystal stickers, jewelry, metal label, window paper-cut, fisheye, decorations, hanging tablets, intelligent cards, inductors, power supplies, mutual inductors, high-voltage vessel, energy meters, and other products.

AB Glue Dual Supply System Vision Dispensing Machine


Machine Parameter

Machine name

AB Glue Dual Supply System Vision Dispensing Machine

Machine model

PS-SJ4060S

Machine sizeL*W*H

214*174*196CM

Number of operational platforms

Left/Right Dual Platform

Number of cameras

Two cameras

Recognition area

40*60CM

Charging bucket capacity

4pcs

Countertops Material

Marble countertops

Machine weigh

740kg

Charging bucket capacity

20L/30L

Cleaning bucket capacity

5L

Number of valves

2-30 gluey nozzles can be made according to the product.

Range of glue dosing proportion

11-101

Measurement method

Gear pump or screw pump (optional)

Number of metering pumps

4 (dual glue supply system)

Measurement accuracy

±2%

Electronic control system

PC+monitor+PLC+Touch screen

peration mode

Servo system control lead screws OR the servo system drives the belt

Operation track

Points, lines, circles, arcs, rectangles

Operation speed

Max 500mm/s

Repeatability

±0.01mm

Mixed model

Static mixing or dynamic mixing

Power supply

AC 110V/60HZAC 220V/50HZ

Machine Power

2000-4000W

Operating pressure range

0.5-0.8MPa


Machine Feature

1. The machine adopts 2 sets of glue supplying system to supply glue, the proportioning accuracy ± 2%;

2. Adopt WINDOWS2000/XP operation interface, easy to learn and understand;

3. The machine can realize the operation track of point, line, circle, arc, rectangle, S shape, etc., and the operation speed can be adjusted;

4. Large-capacity solid-state hard disk, to achieve fast reading, and software with regional arrays, translation and rotation operations and other functions;

5. The amount of glue, glue coating speed, dispensing time, stopping time can be parameterized, the amount of glue is stable, no leakage of glue;

6. AUTO CAD file can be imported to simplify the operation accurately;

7. With CDD auxiliary program editing and teaching functions, shorten the program editing time, greatly improve efficiency.


Applicable Glue

AB Glue Dual Supply System Vision Dispensing Machine is suitable for 1:1-10:1 fixed ratio adjustable epoxy resin AB Glue, polyurethane PU Glue, silicone AB Glue, transparent epoxy resin AB Glue, pouring sealant.

Applicable Glue




Scope of Application

AB Glue Dual Supply System Vision Dispensing Machine apply to crystal stickers, jewelry, metal label, window paper-cut, fisheye, decorations, hanging tablets, intelligent cards, inductors, power supplies, mutual inductors, high-voltage vessel, energy meters, and other products.

Scope of Application
