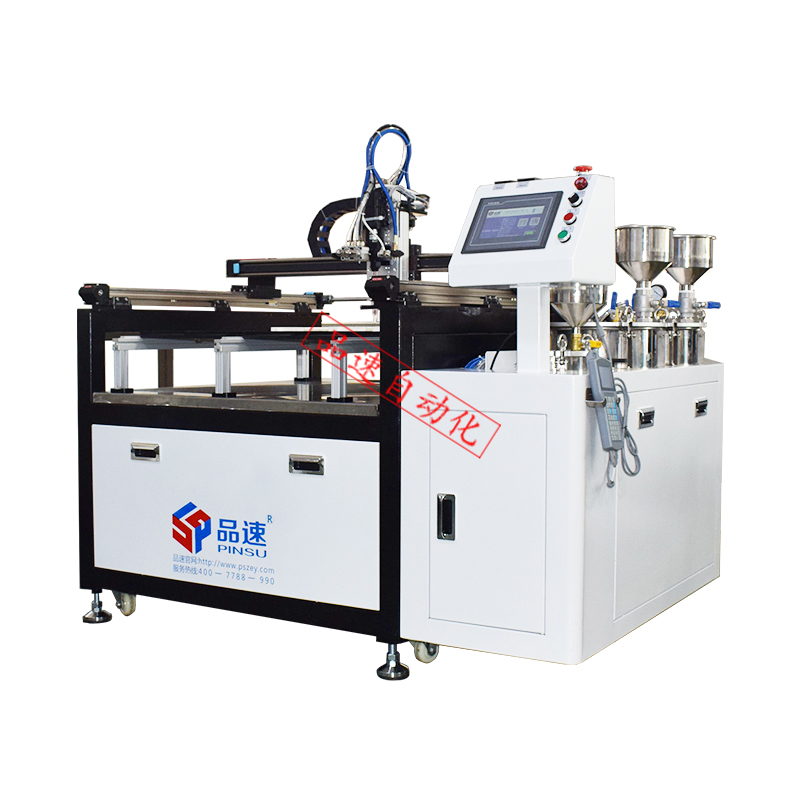

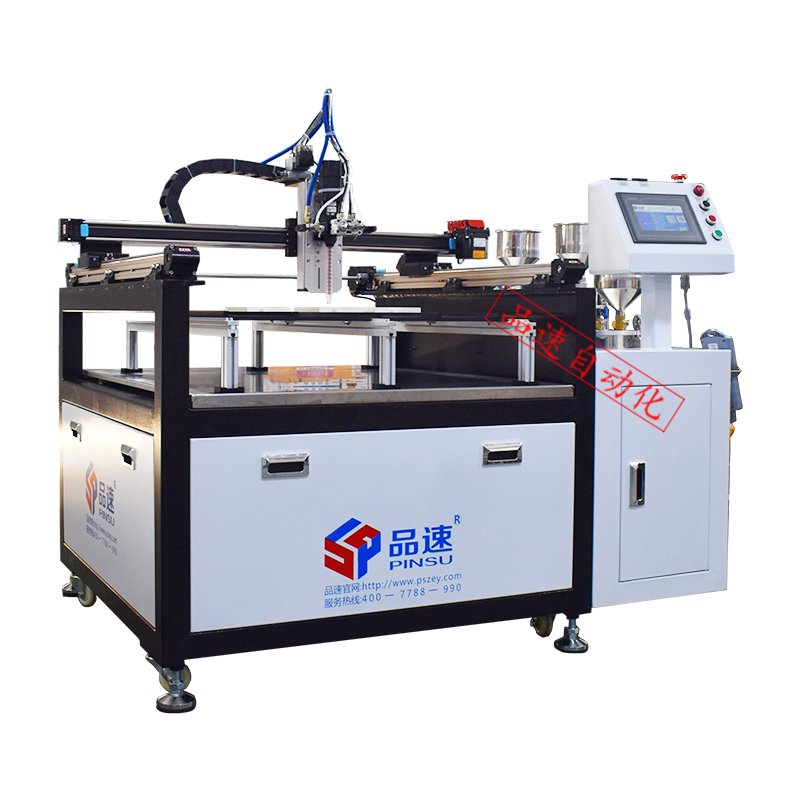

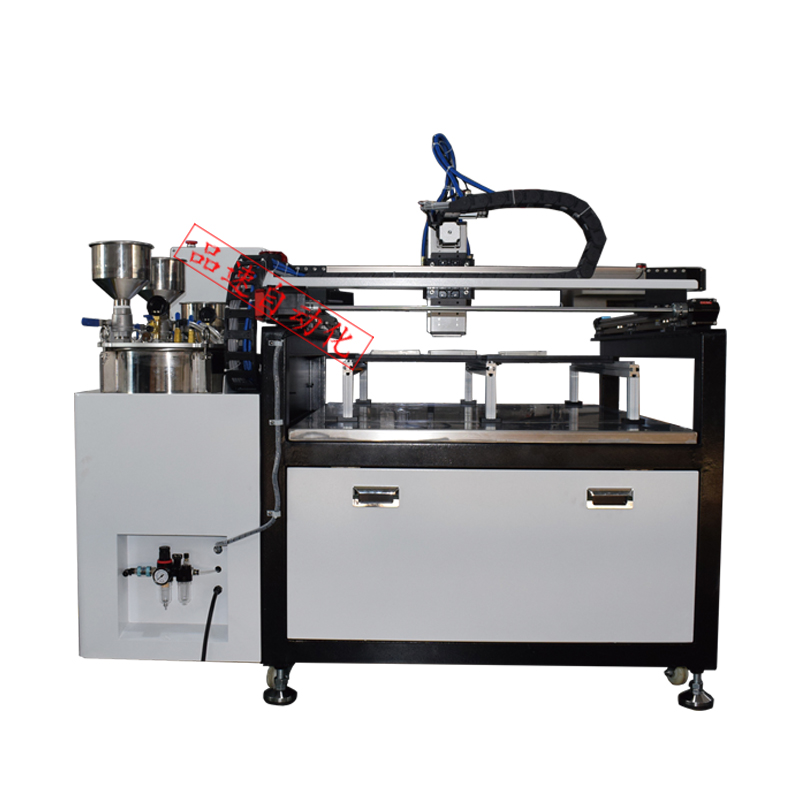

Floor Stand Type Glue Filling Machine (ccm module)

Product Number:DJ771CCM

Product Brand:PINSU

Product Description:

Floor Stand Type Glue Filling Machine(ccm module) is applied to Crystal stickers, labels, drive power, transformers, PCBs, negative ion generators, capacitors, lithium batteries, etc.

+86-400-7788-990
  • Product Parameters
  • Application Industry
  • App Video
Machine Description

Floor Stand Type Glue Filling Machine(ccm module)is mainly driven by stepping motor and run by belt. The running speed is 250mm/s, and the repeatability is±0.05mm. The machine is suitable for 1:1-10:1 fixed ratio adjustable epoxy resin AB adhesive, polyurethane PU adhesive, silicone AB adhesive and so on, and the filling speed is 2-4 times of manual filling.


Floor Stand Type Glue Filling Machine (ccm module)


Machine Parameter

Machine name

Floor Stand Type Glue Filling Machine (ccm module)

Machine model

PS-DJ771CCM

Effective strokeX/Y/Z

X700*Y700*Z100mm

Operation speed

250mm/s

Operation mode

The stepper motor drives the belt

Electronic control system

Touch screen +PLC(with teaching box)

Repeatability

±0.05mm

Operation track

Points, lines, circles, arcs, rectangles, S-shapes, etc

Range of glue dosing proportion

11-101

Glue filling speed

5-100g/5S(Speed is adjustable and varies according to glue characteristics)

Mixed model

Static mixing or dynamic mixing

Glue dispensing accuracy

±2%

Measurement method

Gear pump or screw pump (optional)

Measurement accuracy

±2%

Glue viscosity

<8000CPS

pressure level

MAX≤2.6Mpa

Charging bucket capacity

20L/30L/50L

Cleaning bucket capacity

5L

Material of charging bucket

304 stainless steel

机器电源 Power supply

AC 110V/60HZAC 220V/50HZ

Machine Power

2000-4000w

Operating pressure range

0.5-0.8mpa


Machine Feature

1. Fast running speed, high Repeatability.

2. AB glue automatic proportioning, automatic mixing;

3. The machine comes with a cleaning device, which can clean the mixing valve and mixing tube for next time use;

4. The system comes with anti-curing function, and the automatic glue discharge time can be set;

5. With liquid level sensor, when the glue is not enough, automatic alarm to remind to add glue.


Applicable Glue

Floor Stand Type Glue Filling Machine(ccm module) is suitable for 1:1-10:1 fixed ratio adjustable epoxy resin AB adhesive, polyurethane PU adhesive, silicone AB adhesive and so on.

Applicable Glue



Scope of Application

Floor Stand Type Glue Filling Machine (ccm module) is applied to Crystal stickers, labels, drive power, transformers, PCBs, negative ion generators, capacitors, lithium batteries, etc.

Scope of Application
