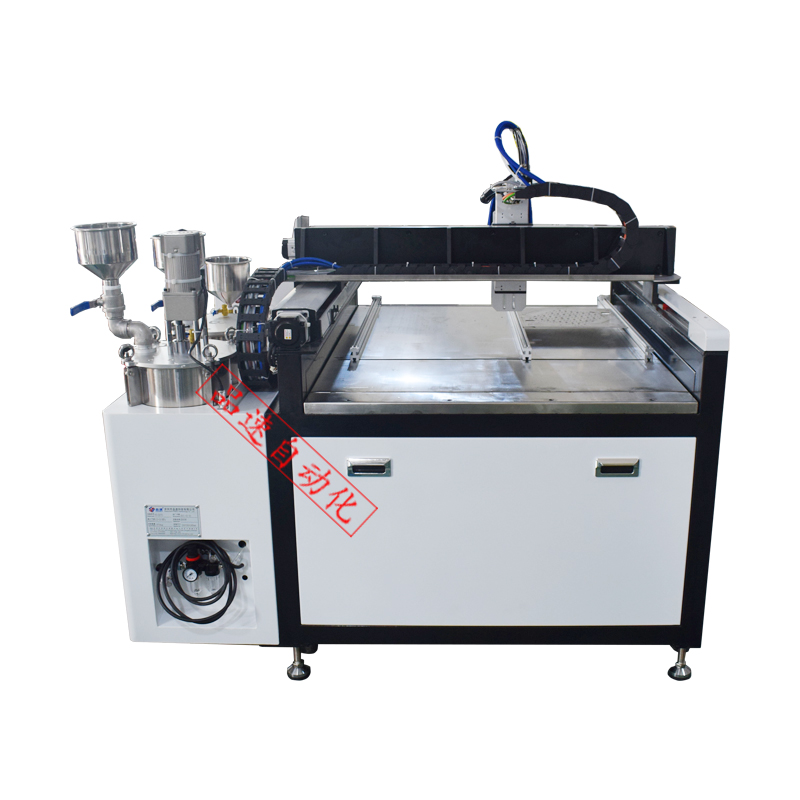

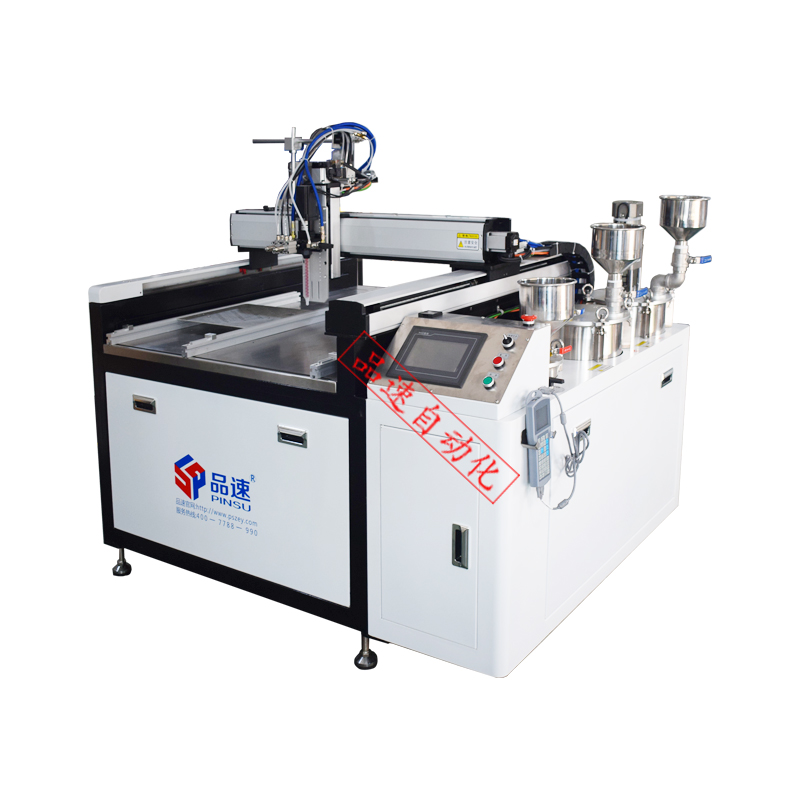

Floor Stand Type Automatic Glue Filling Machine

Product Number:DJ771S

Product Brand:PINSU

Product Description:

Floor Stand Type Automatic Glue Filling Machine (servo motor+Screw rod) is applied to Crystal stickers, labels, drive power, transformers, PCBs, negative ion generators, capacitors, lithium batteries, etc.

+86-400-7788-990
  • Product Parameters
  • Application Industry
  • App Video

【Machine Description

The running module of Floor Stand Type Automatic Glue Filling Machine (servo motor+Screw rod) is mainly run by servo motor and screw. Its running speed is 500mm/s, and the repeatability can reach ±0.01mm. The machine is suitable for 1:1-10:1 fixed ratio adjustable epoxy resin AB glue, polyurethane PU Glue, silicone AB Glue and so on, and the filling speed is 2-5 times of manual filling.

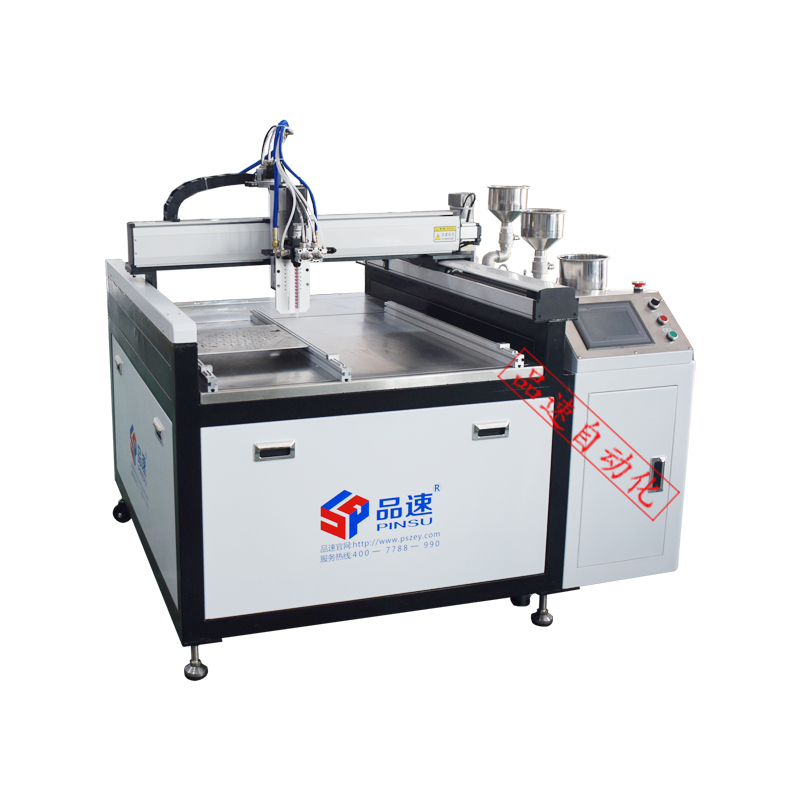

Floor Stand Type Automatic Glue Filling Machine

Machine Parameter

Machine name

Floor Stand Type Automatic Glue Filling Machine

(servo motor+screw)

Machine model

PS-DJ771S

Effective strokeX/Y/Z

X700*Y700*Z100mm

Operation speed

500mm/s

Operation mode

servo motor+screw

Electronic control system

Touch screen +PLC(with teaching box)

Repeatability

±0.01mm

Operation track

Points, lines, circles, arcs, rectangles, S-shapes, etc

Range of glue dosing proportion

11-101

Glue filling speed

5-100g/5S(Speed is adjustable and varies according to glue characteristics)

Mixed model

Static mixing or dynamic mixing

Glue dispensing accuracy

±2%

Measurement method

Gear pump or screw pump (optional)

Measurement accuracy

±2%

Glue viscosity

<8000CPS

pressure level

MAX≤2.6Mpa

Charging bucket capacity

20L/30L/50L

Cleaning bucket capacity

5L

Material of charging bucket

304 stainless steel

Power supply

AC 110V/60HZAC 220V/50HZ

Machine Power

2000-4000w

Operating pressure range

0.5-0.8mpa

Machine Feature

1. Fast running speed, high Repeatability.

2. AB glue automatic proportioning, automatic mixing;

3. The machine comes with a cleaning device, which can clean the mixing valve and mixing tube for next time use;

4. The system comes with anti-curing function, and the automatic glue discharge time can be set;

5. With liquid level sensor, when the glue is not enough, automatic alarm to remind to add glue.

Applicable Glue

Floor Stand Type Automatic Glue Filling Machine (servo motor+Screw rod) is suitable for 1:1-10:1 fixed ratio adjustable epoxy resin AB Glue, polyurethane PU Glue, silicone AB Glue and so on.

Applicable Glue
