Products
Handheld AB Glue pouring machine Handheld AB Glue pouring machine Handheld AB Glue pouring machine Handheld AB Glue pouring machine
Handheld AB Glue pouring machine

Product Number:PS-PJ220SC

Product Brand:PINSU

Product Description:

Handheld AB Glue Filling Machine is suitable for 1:1-10:1 fixed ratio adjustable epoxy resin AB adhesive, polyurethane PU adhesive, silicone AB adhesive and so on.

+86-400-7788-990
  • Product Parameters
  • Application Industry
  • App Video

Machine Description

Handheld AB Glue Filling Machine is also known as manual glue filling machine, semi-automatic glue filling machine, handheld semi-automatic glue filling machine, etc. The machine can automatically proportion the glue and mix the glue automatically. The glue that can be applied is epoxy resin AB glue, polyurethane AB glue, silicone AB glue, etc..

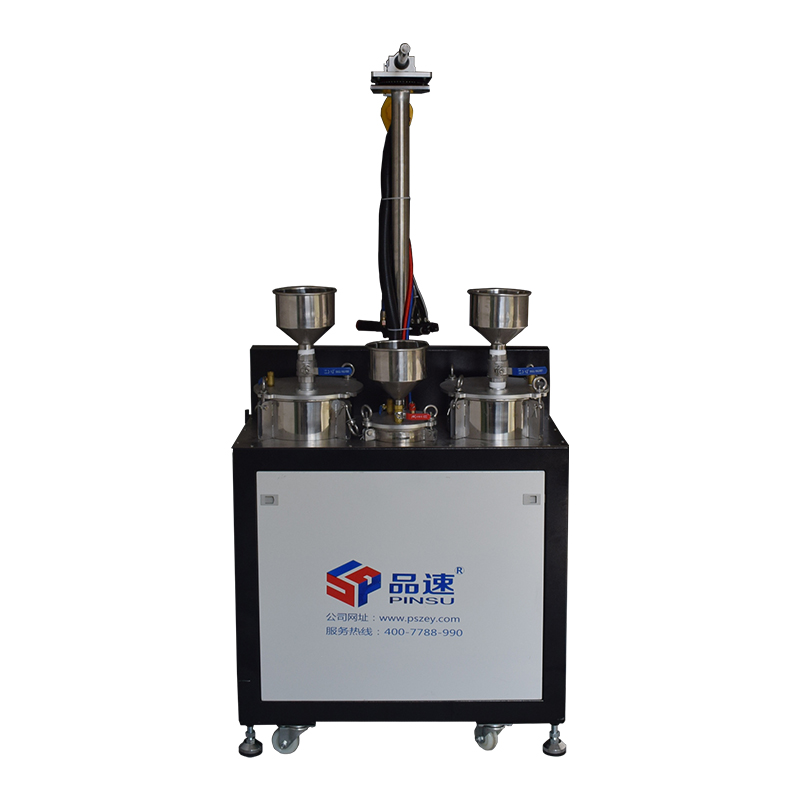

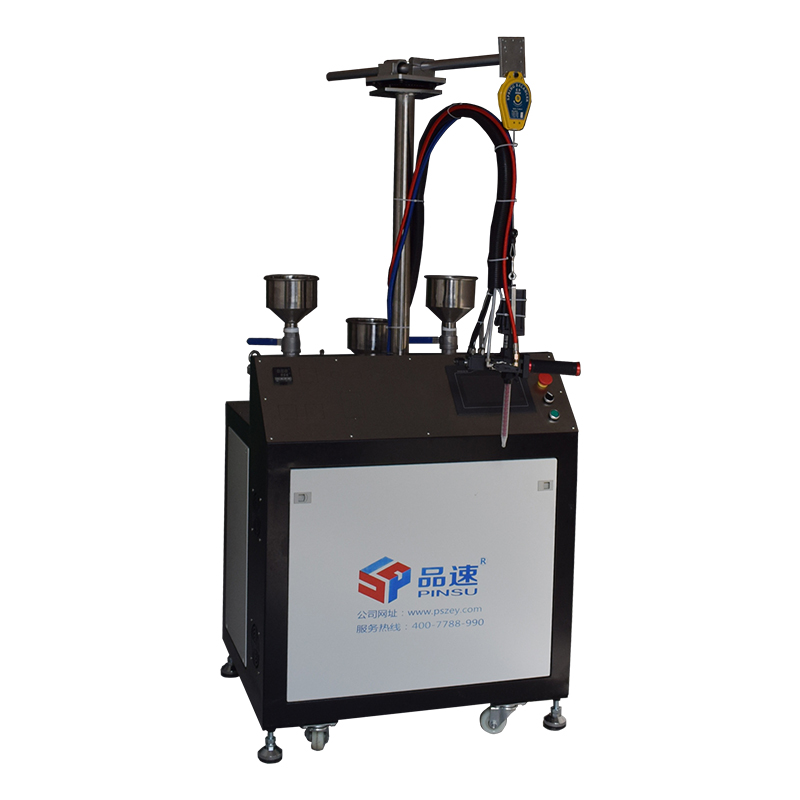

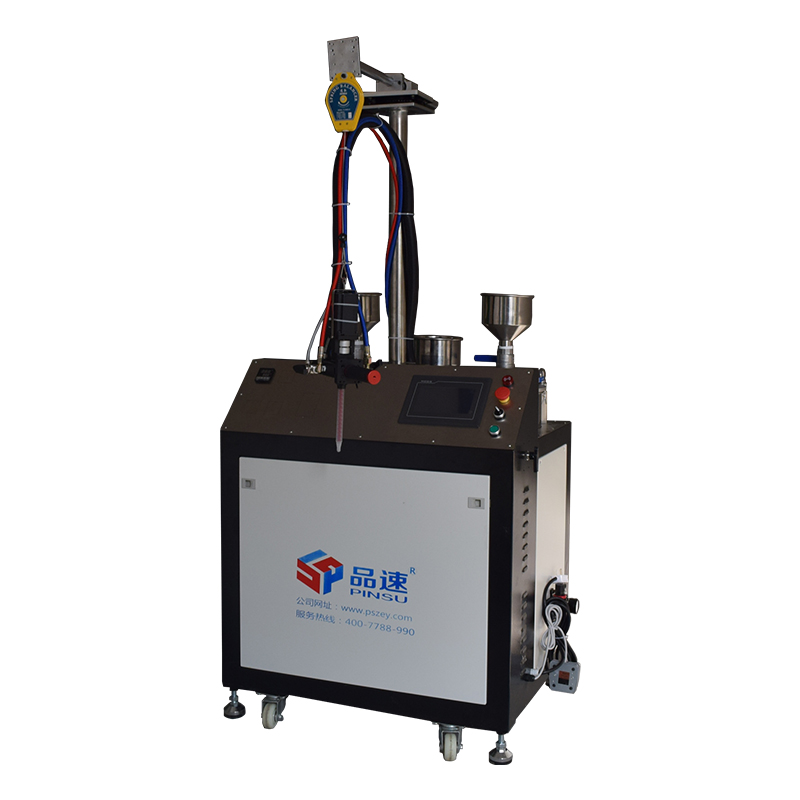

Handheld AB Glue Filling Machine


Machine Parameter

Machine name

Handheld AB Glue Filling Machine

Machine model

PS-PJ220SC

Machine sizeL*W*H

85CM*65CM*179CM

Applicable product sizes

1.5 meter radius

Machine weight

135Kg

Charging bucket capacity

20L/30L/50L

Cleaning bucket capacity

5L

Range of glue dosing proportion

11-101

Measurement method

Gear pump or screw pump (optional)

Measurement accuracy

±2%

Glue dispensing accuracy

±2%

Mixed model

Static mixing or dynamic mixing

Electronic control system

Touch screen +PLC

Power supply

AC 110V/60HZAC 220V/50HZ

Machine Power

1000W-2000W

Operating pressure range

0.4-0.8MPa

operation mode

The product is fixed and glued on the countertop


Machine Feature

1.AB glue automatic proportioning, automatic mixing, you can manually control the glue;

2. The machine is small, easy to move, simple to operate; easy to learn;

3. The charging bucket is seamlessly welded, corrosion-resistant and easy to clean;

4. We use precision metering pump to measure the glue, metering accuracy ± 2%;

5. There is a liquid level sensor in the charging bucket, the glue is not enough to alarm, to remind the personnel need to pour glue into the barrel;

6. The machine comes with a cleaning device, it can be quickly cleaned efficiently on the mixing valve, mixing tube, convenient for the next use;

7. The amount of glue, glue time can be adjusted to ensure that the product filling quality.


Applicable Glue

Handheld AB Glue Filling Machine is suitable for 1:1-10:1 fixed ratio adjustable epoxy resin AB adhesive, polyurethane PU adhesive, silicone AB adhesive and so on.


Applicable Glue

Scope of Application

Handheld AB Glue Filling Machine can be used for LED fill light, aviation plug, touch switch, liquid crystal display, ballast, waterproof fan, plant light, waterproof power supply, sensor transducer, LED panel lights, wall washing lights, power supplies, chargers, transformers, mutual inductor, capacitors, filters, home appliance control panels and other products.

Scope of Application
