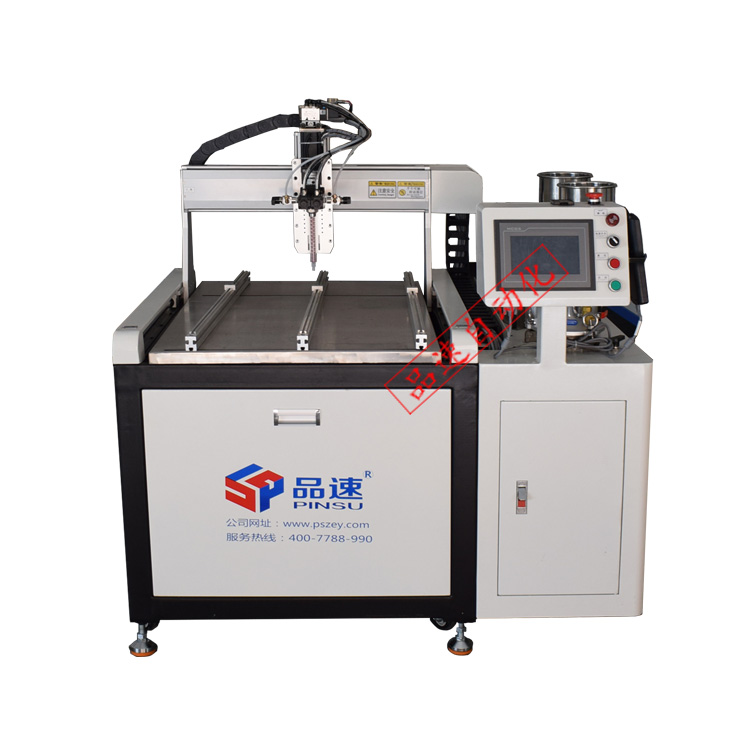

Automatic AB Glue Filling Machine(Floor Stand Type )

Product Number:DJ551/DJ771/DJ0815/DJ1010/DJ1224

Product Brand:PINSU

Product Description:

Floor Stand Type Automatic AB Glue Filling Machine is suitable for 1:1-10:1 fixed ratio adjustable epoxy resin AB adhesive, polyurethane PU adhesive, silicone AB adhesive and so on.

+86-400-7788-990
  • Product Parameters
  • Application Industry
  • App Video

Machine Description

Floor Stand Type Automatic AB Glue Dispensing Machine is also called floor type glue dispensing machine, gantry rack type glue filling machine, etc., which adds XYZ three-axis operation based on automatic glue dispensing; According to the proportion and type of ab glue to choose gear pump or screw pump (suitable for epoxy resin ab adhesive, polyurethane ab adhesive, silicone ab adhesive) and it can be applied to a wide range of products, such as LED fill light, aviation plug, touch switch, liquid crystal display, ballast, waterproof fan, plant light, waterproof power supply, sensor transducer, LED panel lights, wall washing lights, power supplies, chargers, transformers, mutual inductor, capacitors, filters, home appliance control panels, crystal porcelain paintings, sliding doors, photo frames, photo albums, screens, backdrops, floor tiles and other products.Machine Showcase


Machine Parameter

Machine name

Floor Stand Type Automatic AB Glue Filling Machine

Machine model

PS-DJ551

PS-DJ771

PS-DJ1010

PS-DJ0815

PS-DJ1224

Machine sizeL*W*H

95*128*148CM

115*147*148CM

135*178*148CM

159*196*148CM

288*202*148CM

Effective strokeX/Y/Z

50*50*10CM

70*70*10CM

100*100*10CM

80*150*10CM

120*240*10CM

Machine weight

300Kg

340Kg

360Kg

380Kg

480Kg

Material of charging bucket

304 stainless steel

Charging bucket capacity

20L/30L/50L

Cleaning bucket capacity

5L

Number of gluey nozzle

2-30 gluey nozzles can be made according to the product.

Range of glue dosing proportion

1: 1-10:1

Measurement method

Gear pump or screw pump (optional)

Measurement accuracy

±2%

Glue dispensing accuracy

±2%

Electronic control system

Touch screen +PLC+ Intelligent motion control card (with teaching box)

Operation mode

The stepper motor drives the belt

Operation track

Points, lines, circles, arcs, rectangles, S-shapes, etc

Operation speed

Max 300mm/s

Repeatability

±0.05mm

Mixed model

Static mixing or dynamic mixing

Machine Power

1000W-3500W

Power supply

AC 110V/60HZAC 220V/50HZ

Operating pressure range

0.5-0.8MPa


Machine Feature

1.AB glue can be automatically proportioning, automatic mixing, quantitative glue

2. The glue output of AB glue and the time of glue output can be adjusted;

3. The machine can realize the operation track of point, line, circle, arc, rectangle, S shape, etc., and the operation speed can be adjusted;

4. Ab glue barrel comes with liquid level sensor, when the glue is insufficient, the system will remind to add glue;

5. The machine comes with a cleaning device, which can automatically clean the mixing valve and mixing tube for next time use.



Applicable Glue

Floor Stand Type Automatic AB Glue Filling Machine is suitable for 1:1-10:1 fixed ratio adjustable epoxy resin AB adhesive, polyurethane PU adhesive, silicone AB adhesive and so on.

Applicable Glue



Scope of Application

Floor Stand Type Automatic AB Glue Dispensing Machine can be used for LED fill light, aviation plug, touch switch, liquid crystal display, ballast, waterproof fan, plant light, waterproof power supply, sensor transducer, LED panel lights, wall washing lights, power supplies, chargers, transformers, mutual inductor, capacitors, filters, home appliance control panels, crystal porcelain paintings, sliding doors, photo frames, photo albums, screens, backdrops, floor tiles and other products.

Scope of Application
