Products
3 axis Cantilever Type Automatic Glue Filling Machine 3 axis Cantilever Type Automatic Glue Filling Machine 3 axis Cantilever Type Automatic Glue Filling Machine 3 axis Cantilever Type Automatic Glue Filling Machine

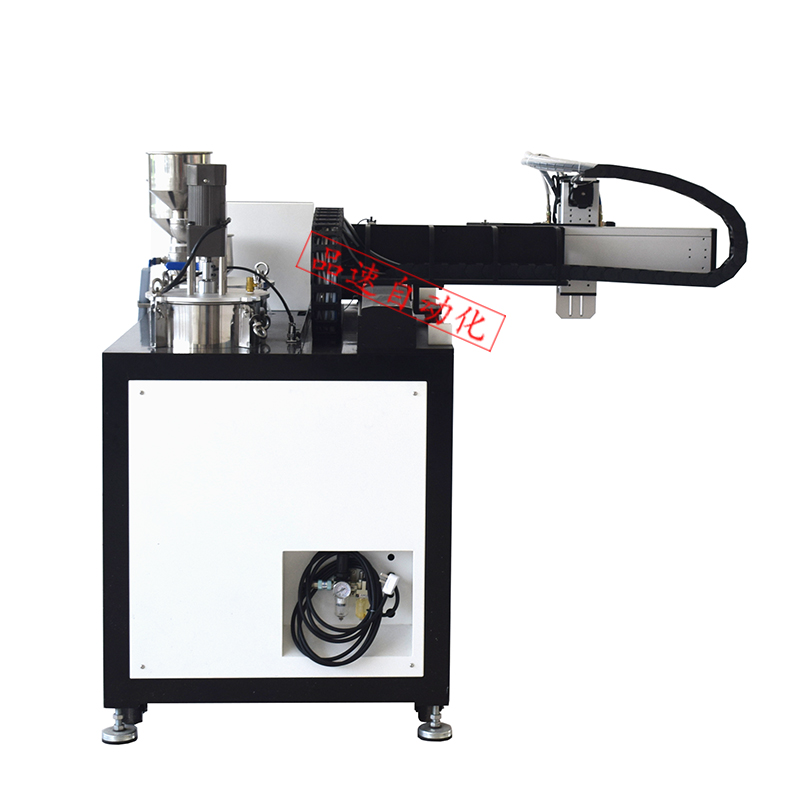

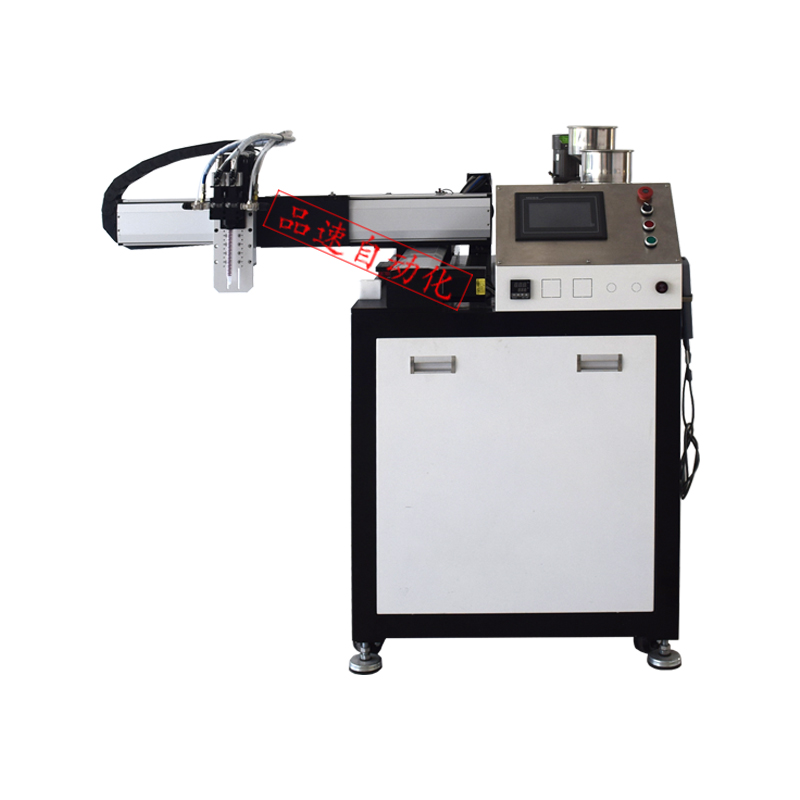

3 axis Cantilever Type Automatic Glue Filling Machine

Product Number:PS-DJ

Product Brand:PINSU

Product Description:

3-axis Cantilever Type Automatic Glue Filling Machine are used in Ethernet transformer,stabiliser, gas meter, electric meter, waterproof power supply, charger, water pump, lithium battery, PCB......

+86-400-7788-990
  • Product Parameters
  • Application Industry
  • App Video

【Machine Description】

The 3-axis Cantilever Type Automatic Glue Filling Machine can be easily realized the assembly line type glue filling by the connection of the data line. It is mainly applied to products such as gas meter, electric meter, waterproof power supply, charger, water pump, lithium battery, PCB and so on. The Three-axis Cantilever Type Automatic Glue Filling Machine has high mixing precision, adjustable glue output, and comes with cleaning function. When the machine is not used, it can automatically clean the mixing valve and mixing tube to ensure normal use next time.

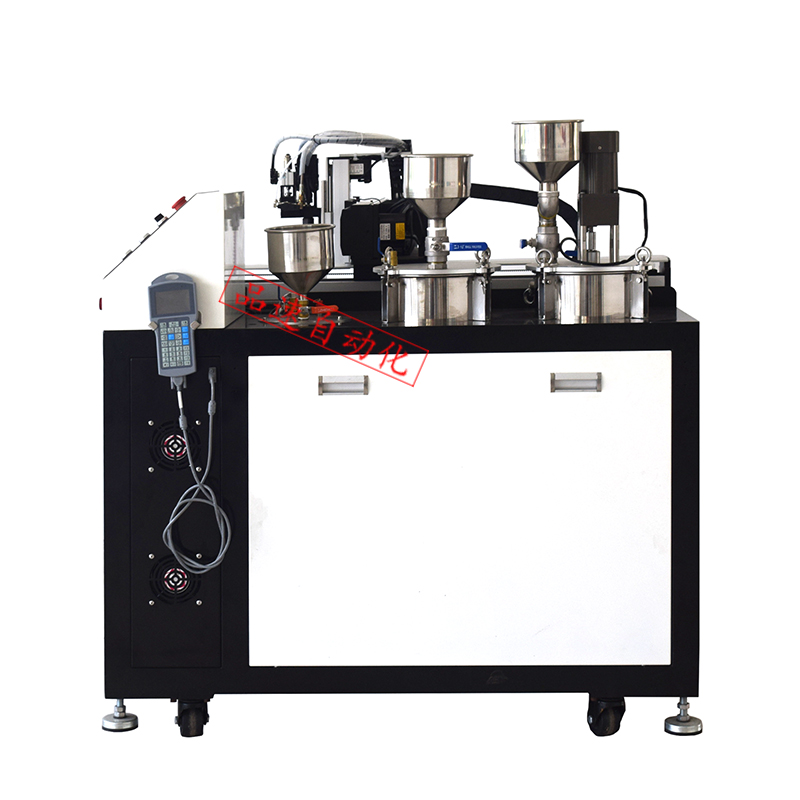

3 axis Cantilever Type Automatic Glue Filling Machine

Machine Parameter

Machine name

3-axis Cantilever Type Automatic Glue Filling Machine

Effective strokeX/Y/Z

90*35*10CMCan be customized

Machine weight

280Kg

Charging bucket capacity

20L/30L/50L

Cleaning bucket capacity

5L

Number of gluey nozzle

2-30 gluey nozzles can be made according to the product

Range of glue dosing proportion

11-101

Measurement method

Gear pump or screw pump (optional)

Measurement accuracy

±2%

Glue dispensing accuracy

±2%

Electronic control system

Touch screen +PLC+ Intelligent motion control card (with teaching box)

Operation mode

servo motor+screw

Operation track

Points, lines, circles, arcs, rectangles, etc

Operation speed

Max 500mm/s

Repeatability

±0.02mm

Mixed model

dynamic mixing

Power supply

AC 110V/60HZAC 220V/50HZ

Machine Power

 2000W

Operating pressure range

0.5-0.8MPa


Machine Feature

1. The operation is simple and easy to learn;

2. The ratio, time, speed and amount of glue can be set;

3. Customers can independently choose high-precision wear-resistant metering pump;

4. Our team independently developed high speed dynamic mixing system to ensure uniform mixing;

5. The machine is equipped with automatic pressure sensing, timed glue discharge function and automatic cleaning function;

6. The barrel is equipped with multi-layer filtration system and high sensitivity liquid level sensing alarm system;

7. The machine is installed to the assembly line, through the signal connection, to realize the assembly line glue filling.


Applicable Glue

3-axis Cantilever Type Automatic Glue Filling Machine for 1:1-10:1 epoxy resin AB Glue, polyurethane PU Glue,silicone AB Glue.
Applicable Glue


Scope of Application

3-axis Cantilever Type Automatic Glue Filling Machine are used in Ethernet transformer,stabiliser, gas meter, electric meter, waterproof power supply, charger, water pump, lithium battery, PCB......

Scope of Application
